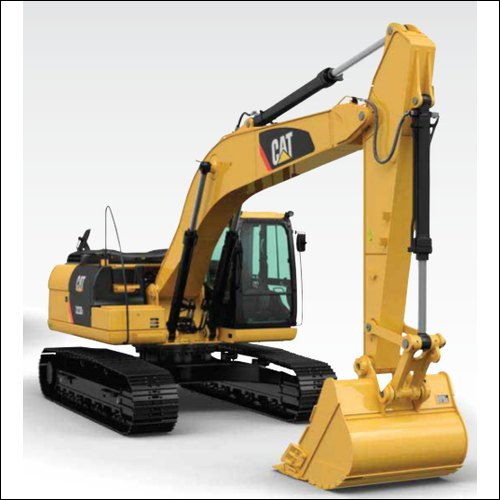

Send InquiryCAT 323D3 151 HP Hydraulic Excavator
Product Details:
- Computerized No
- Automatic No
- Hydraulic Steering No
- Control System Manual
- Color Yellow
- Warranty Yes
5000000.00 - 15000000.00 INR/Unit
X
CAT 323D3 151 HP Hydraulic Excavator Price And Quantity
- 5000000.00 - 15000000.00 INR/Unit
- 1 Unit
CAT 323D3 151 HP Hydraulic Excavator Product Specifications
- No
- Yellow
- Manual
- Yes
- No
- No
CAT 323D3 151 HP Hydraulic Excavator Trade Information
- 30 Days
Product Description
| Operating Weight | 22800 kg |
| Maximum Engine Power | 106 kW (142 HP) (Net) |
| Max Digging Depth | 6300 mm |
| Brand | CAT |
| Model Name/Number | 323D3 |
| Tail Swing Radius | 2750 mm |
| Bore | 105 mm |
| Stroke | 135 mm |
| Fuel Tank | 410 L |
| Ground Clearance | 450 mm |
| Engine Oil | 18 L |
| Displacement | 7.01 L |
| Hydraulic Tank | 138 L |
| Engine Model | Cat C7.1 |
| Max. Cutting Height | 9250 mm |
| Speed Rpm | 1700 rpm (Operation),1800 rpm (Travel) |
| Track Gauge | 2380 mm |
| Shipping Length | 9460 mm |
| Track Length to Center of Rollers | 3650 mm |
| Gross Power | 113 kW (151 HP) |
| Maximum Pressure | 35000 kPa (Equipment),35000 kPa (Travel),25000 kPa (Swing) |
| Hydraulic System | 260 L (including tank) |
| Swing Drive | 6 L |
| Final Drive | 5 L |
| Stick Digging Force | 118 kN (ISO),114 kN (SAE) |
| Bucket Digging Force | 140 kN (ISO),125 kN (SAE) |
| Max Vertical Wall Digging Depth | 5290 mm |
| Max Depth of Cut | 5960 mm |
| Loading Height | 6290 mm (max),2590 mm (min) |
| Max Reach at Ground Level | 9470 mm |
| Counterweight Clearance | 1020 mm |
| Transport Width | 2980 mm |
